Industrial Washers
Choose the washer geometry that matches your joint: plain, spring, shim, tab, taper, star or square. Review dimensions, material condition and the applicable standard or drawing before ordering.
Request a QuoteView Washer RangeWasher DIN Tables
View washer dimensional tables and drawings by DIN number in one bookmarked PDF.
Choose Your Washer Type

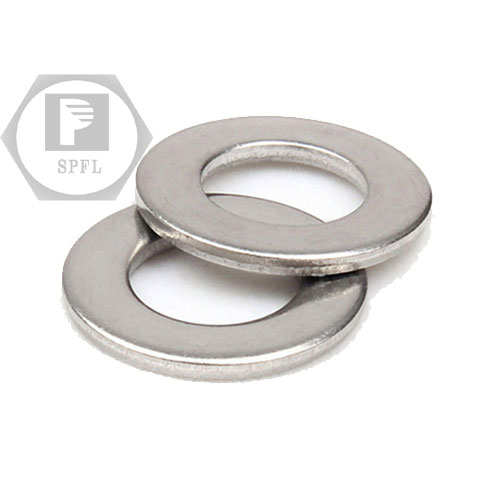

Plain Washer
A flat circular washer that spreads the bearing load beneath a bolt head or nut and protects the seating surface.
DIN 125 legacy reference / ISO 7089
View Specifications

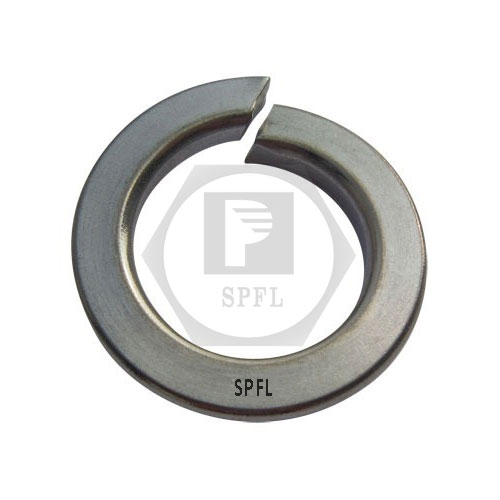

Spring Washer
A split helical washer for assemblies specifically designed to use this spring-washer form.
DIN 127 legacy split spring washer reference
View Specifications

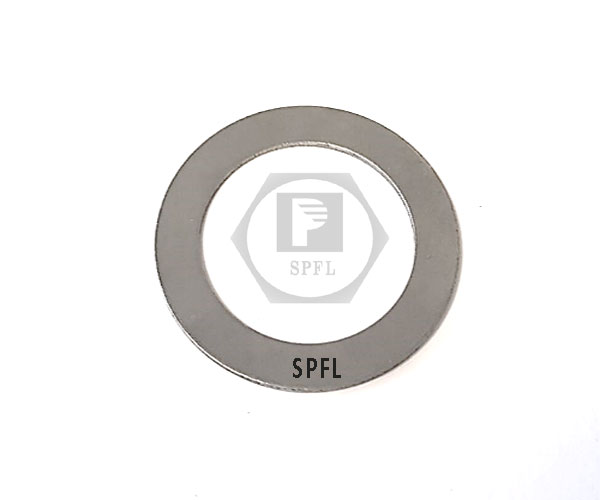

Shim Washer
A precision spacing washer used to adjust axial clearance or position in an engineered assembly.
DIN 988 shim ring reference / customer drawing
View Specifications

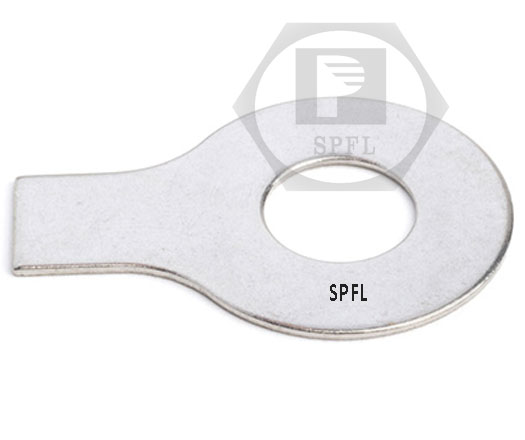

Tab Washer
A washer with a deformable tab used in a designed mechanical retention arrangement.
DIN 93 legacy long-tab reference / customer drawing
View Specifications

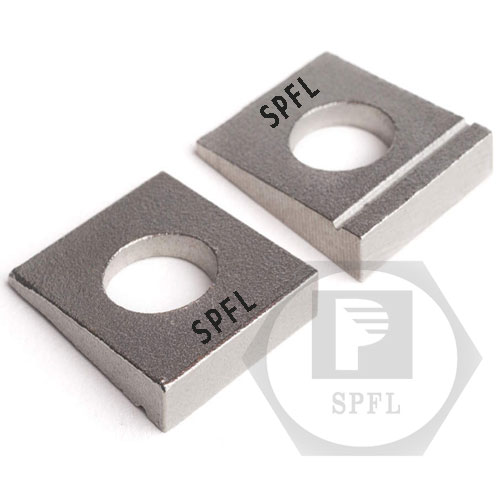

Taper Washer
A wedge-shaped washer that provides an appropriate seating face on a specified sloping structural surface.
DIN 434 U-section / DIN 435 I-section references
View Specifications

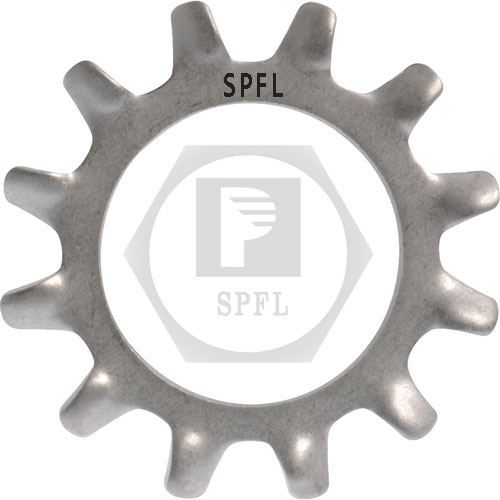

Star Washer
A toothed washer with internal or external teeth for a fastening arrangement requiring the specified tooth contact.
DIN 6797 legacy toothed lock washer reference
View Specifications

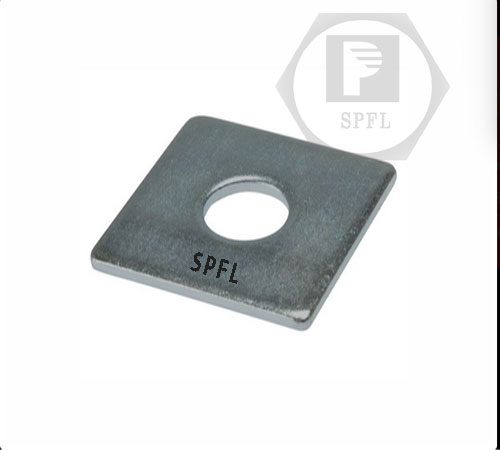

Square Washer
A flat washer with a square outer profile for a joint requiring the specified bearing footprint.
DIN 436 square washer reference / customer drawing
View SpecificationsStainless Steel & Special-Alloy Grade Enquiries
Specify the exact material grade and condition. These are RFQ options, not a stock list or a statement that every alloy meets every washer standard. Availability and technical suitability require confirmation.
| Requested grade | Confirm with your enquiry |
|---|---|
| SS 304 / 304L | Exact material specification, condition and required hardness or mechanical properties. |
| SS 316 / 316L | Corrosion environment, material condition, finish and specified washer performance. |
| SS 310 / 310S | Exact grade, service temperature and mechanical requirements; metal grade alone is not operating approval. |
| SS 904L | Stainless steel grade request; confirm product specification, manufacturing route and application. |
| HASTELLOY family | Exact alloy designation, material condition and test/documentation requirements. |
| Alloy 20 | Exact material specification and service conditions. |
| MONEL family | Exact alloy designation and required washer dimensions/mechanical properties. |
| INCONEL family | Exact alloy designation, temperature conditions and required mechanical performance. |
Washer geometry, hardness, spring condition or bendability must be specified separately from alloy name. Bolt and nut strength classes are not washer grades.
Specify Dimensions, Grade & Function Separately
For a circular washer, give inside diameter, outside diameter and thickness. Square and taper washers also need side dimensions and, where relevant, slope and orientation. Shims need thickness tolerance; spring, star and tab washers require their form and installation conditions.
A flat bearing washer is not automatically a locking device, and a dimensional standard does not establish material certification, stock availability or performance in every joint.
Send Your Washer Requirement
Type · actual dimensions · material grade and condition · quantity · standard edition or drawing · finish · application · documentation · delivery location.
