SHRI PARVATI INDUSTRIES · SPFL® BOLT RANGE

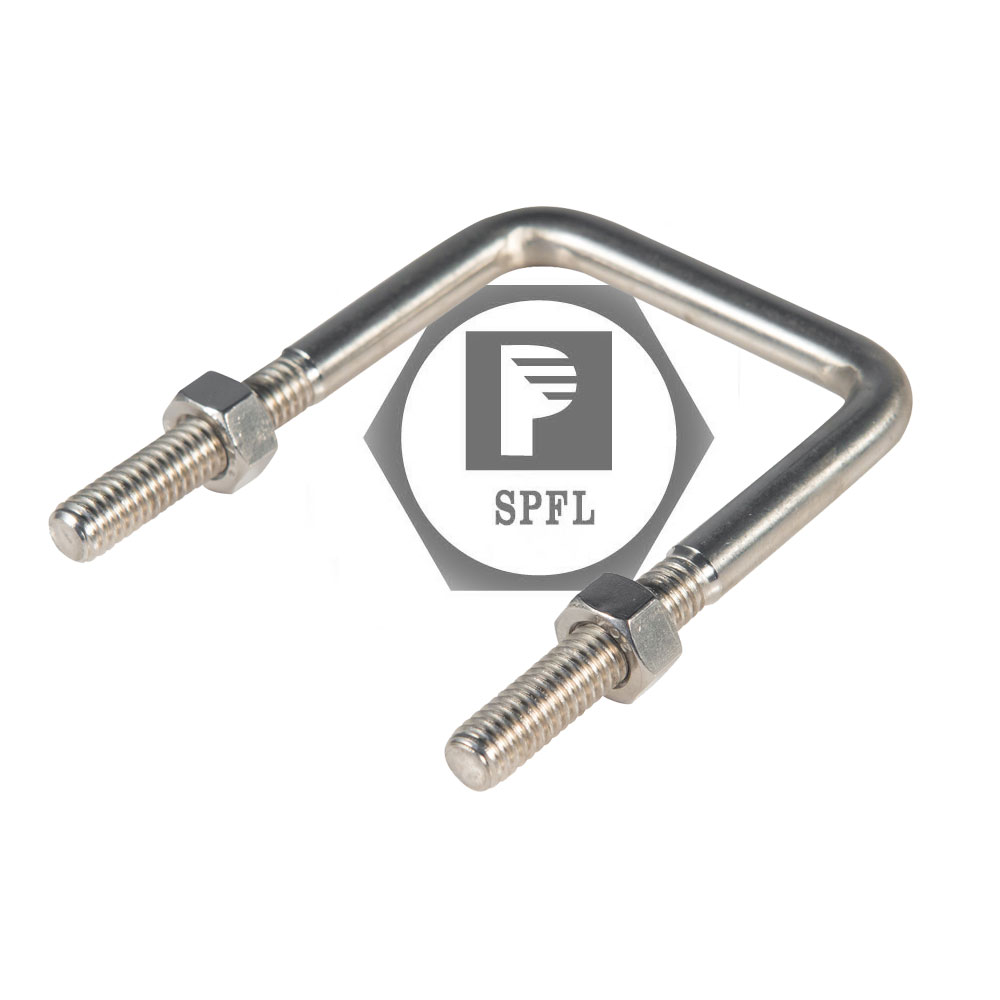

Square U bolts are available to the specifications below. Share the required pipe size, bolt diameter, thread, grade and drawing when enquiring.
Square U Bolt Specifications
| Materials | Square U Bolt |
|---|---|
| Grades | A2-70, A4-70, 304, 316, 310, 904L, MS, GI, Hot-Dip GI |
| Standards | DIN 3570, BS 3974 |
| Size in diameter | 5 mm to 48 mm |
| Thread | MM, UNC, BSW |
| Size for pipe | 10 mm OD to 1200 mm OD; 14″ NB to 48 NB; customised sizes |
| Manufacturing | Cold forming / hot forging |
For an enquiry, share your required dimensions, grade, quantity and drawing or applicable standard.
